MODELS AVAILABLE

A Model For Every Requirement

Standard Features Include:

  • All Burgess Magna-Vac Degassers® are Det Norske Veritas (DNV) Type Approved.
  • All Burgess Magna-Vac Degassers® are qualified for a Certificate of Design Assessment by American Bureau of Shipping (ABS) upon request.
  • Explosion Proof Motors meet United States of America requirements for National Electrical Code (NEC), National Electrical Manufacturers Association (NEMA) and Underwriters Laboratories, Inc. (UL) Class I Groups C and D; Class II Groups E, F and G.
  • Burgess Magna-Vac Degassers® fitted with a Flame Proof Metric Motor meet European Directives for International Electro technical Commission (IEC), CE Mark, and Explosive Atmospheres (ATEX).
  • Regenerative vacuum blower safely removes air and gasses from drilling mud.
  • Ability to run dry continuously, self priming.
  • No complicated "start up" procedure, only "start - stop" controls.
  • Automation compatible.
  • No auxiliary pump or feed pump required.
  • Capable of 100 cubic feet per minute positive discharge of gas without accessories.
  • 500 or 1000 US gallons per minute positive discharge mud flow rate.
  • Automatic lubrication system with remote monitoring of lubrication level.
  • Stainless steel fasteners and hardware.
  • Suitable for mounting on top, to the side, between or in the mud pit.
  • Ability to restore mud weight.
  • Complete documentation of manufacturing process and testing accompanies each Burgess Magna-Vac Degasser®.
  • Powder coated components allow safe removal of H2S and other gasses.
  • Will fit through man way door for ease of installation.
  • Gas discharge line may be pointed any direction relative to the mud discharge line.
  • Access to all internal parts without removing vessel or piping.
  • Optional sound shield for noise reduction.
  • Turbo-Vac® Booster kit available for increased vacuum.



Burgess Magna-Vac Degassers®

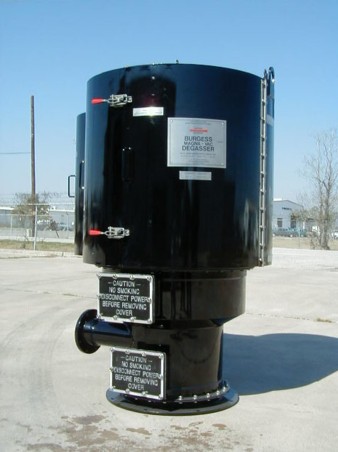

SoundShield available on all models.

   Model 1500
  • 25 Horsepower (20 Horsepower Drive Motor and a 5 Horsepower Turbo-Vac Booster)
  • 15" of Mercury Vacuum Maximum
  • 1000 Gallons Per Minute Maximum
  • 1525 Pounds
  • Dimensions: 44" diameter, 73" height




Model 1000
  • 20 Horsepower
  • 10" of Mercury Vacuum Maximum
  • 1000 Gallons Per Minute Maximum
  • 1325 Pounds
  • Dimensions: 44" diameter, 73" height


Model 1000-H

  • 20 Horsepower (Hydraulic Motor)
  • 10" of Mercury Vacuum Maximum
  • 1000 Gallons Per Minute Maximum
  • 925 Pounds
  • Dimensions: 44" diameter, 58" height

Model 500

    20 Horsepower
  • 10" of Mercury Vacuum Maximum
  • 500 Gallons Per Minute Maximum
