All Burgess Magna-Vac™ Degassers are Det Norske Veritas (DNV) Type Approved.
All Burgess Magna-Vac™ Degassers are qualified for a Certificate of Design Assessment by American Bureau of Shipping (ABS) upon request.
Explosion Proof Motors meet United States of America requirements for National Electrical Code (NEC), National Electrical Manufacturers Association (NEMA) and Underwriters Laboratories, Inc. (UL) Class I Groups C and D; Class II Groups E, F and G.
Burgess Magna-Vac™ Degassers fitted with a Flame Proof Metric Motor meet European Directives for International Electrotechnical Commission (IEC), CE Mark, and Explosive Atmospheres (ATEX).
Regenerative vacuum blower safely removes air and glasses from drilling mud.
Ability to run dry continuously, self priming.
No complicated "start up" procedure, only "start - stop" controls.
Automation compatible.
No auxiliary pump or feed pump required.
Capable of 100 cubic feet per minute positive discharge of gas without accessories.
500 or 1000 US gallons per minute positive discharge mud flow rate.
Automatic lubrication system with remote monitoring of lubrication level.
Stainless steel fasteners and hardware.
Suitable for mounting on top, to the side, between or in the mud pit.
Ability to restore mud weight.
Complete documentation of manufacturing process and testing accompanies each Burgess Magna-Vac™ Degasser.
Powder coated components allow safe removal of H2S and other gasses.
Will fit through man way door for ease of installation.
Gas discharge line may be pointed any direction relative to the mud discharge line.
Access to all internal parts without removing vessel or piping.
Optional sound shield for noise reduction.
Turbo-Vac™ Booster kit available for increased vacuum.

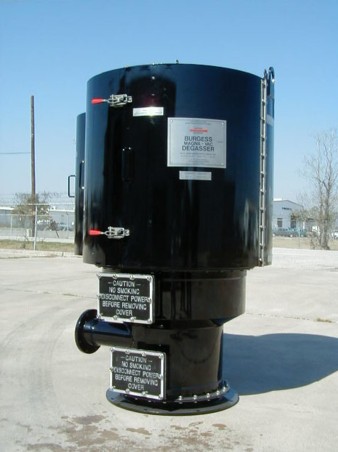

Burgess Magna-Vac ™ Degasser
Model 1500
25 Horsepower (20 Horsepower Drive Motor and a 5 Horsepower Turbo-Vac
Booster)
